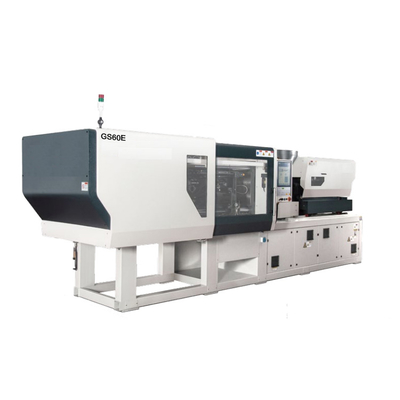

Horizontal factory high quality full-electric plastic injection molding machine for wholesale

1 Set
MOQ
$22,000.00(1 - 1 Sets) $21,500.00(2 - 4 Sets) $20,500.00(>=5 Sets)
Precio
Horizontal factory high quality full-electric plastic injection molding machine for wholesale
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New
Style: Horizontal
Injection Rate (g/s): 57
Machine Type: Electric
Injection Weight (g): 25
Screw diameter (mm): 20
Distance between Tie Bars: 370*320mm
Weight (KG): 3300
Type: Full-electric injection molding machine
Place of Origin: Zhejiang, China
Model Number: GS60E
Nombre de la marca: grand step
Power (kW): 5.25
Warranty: 1 Year
Key Selling Points: High Productivity
Applicable Industries: Manufacturing Plant
Certificación: CE, ISO9001
Automatic: Yes
Plastic Type: Thermoplastic
Opening Stroke: 270mm
After-sales Service Provided: Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support, Video technical support
Clamping Force (kN): 600
Cylinder head volume: 28cm
Injection pressure: 270MPa
Shot speed: 200/350mm/s
Injection stroke: 90mm
Screw speed: 400rpm
Min. Mould size: 240*205mm
Min. Mould height: 150mm
Ejector force: 20KN
Nozzle touch force: 14.8KN
Machine dimension: 4.25*1.3*1.54m
Información básica
Place of Origin: Zhejiang, China
Nombre de la marca: grand step
Certificación: CE, ISO9001
Model Number: GS60E
Pago y Envío Términos
Packaging Details: Wooden pallet suitable for seaworthy.
Supply Ability: 200 Set/Sets per Month
Descripción de producto
Product Description

Factory high quality full-electric plastic injection molding machine for wholesale


Product Information

Model

GS60E

Specification
80V150V
Injection Unit
ABCABC
Screw diametermm202226262832
Screw L/D ratioL/D202018212119
Cylinder head volumecm³283447586788
Shot weightg253143536180
Injection pressureMPa270223160255220168
Injection rateg/s57/10069/12197/16997/169112/196146/256
Shot speedmm/s200/350200/350
Injection strokemm90110
Screw speedrpm400400
Nozzle touch forceKN14.814.8
Sphere diameter of nozzlemmSR10SR10
Clamping Unit
Clamping forceKN600
Max. mould opening strokemm270
Space between tie-barsmm370*320
Min. Mould sizemm240*205
Min. Mould heightmm150
Max. Mould heightmm370
Dia of mould location holemmφ100H7
Ejector strokemm70
Ejector forceKN20
Ejector numberPCS5
Others
Motor powerkw8.9/9.511.8/11
Heating powerkw5.257.95
Heating section3+33+3
Machine dimensionm4.25*1.3*1.544.25*1.3*1.54
Machine weightt3.33.5



Application

Full-electric injection molding machine is an independently researched and developed full-electric injection molding machine; it is equipped with the mechanical structure that is suitable for high speed and high precision operation. The high-speed servo control circuit it equipped is available for the plastic industry pursuing efficient and high-tech requirements.


It integrated the most advanced drive and transmission technology, combined with abundant specialized technical demands of molding, blended simple and convenient humanized design concept, adopted modernized digital processing technology, and equipped with the excellent properties such as energy saving, environmental protection, high speed, efficient, precise control, reliable operation and convenient operation, which greatly satisfied customers various demands for machine stability, production efficiency and environmental protection property.


The device is widely applied to various fields of plastic processing industry, including electric equipment products, photoelectric digital products, automobile accessory and aviation product, medical treatment and food packaging, cosmetic packaging, plastic toy,sports leisure instrument, and optics etc.
